WICKON profile Advantages:
1.Ensure that products meet the welding specifications
2.Highlighting the hot furnace cooling
3.Set oven to save time and money required
4.So that production can be maximized
5.Provide ISO9000 traceability process required proof
Use these steps for profile :
1. Set: Reset data logger and temperature measuring probe is connected to the product.
2. through the process: the recorder placed in insulated boxes. The recording device with the product through the high-temperature furnace to record millions of temperature readings.
3. Analysis: Insight software to understand the situation exactly the furnace is happening.

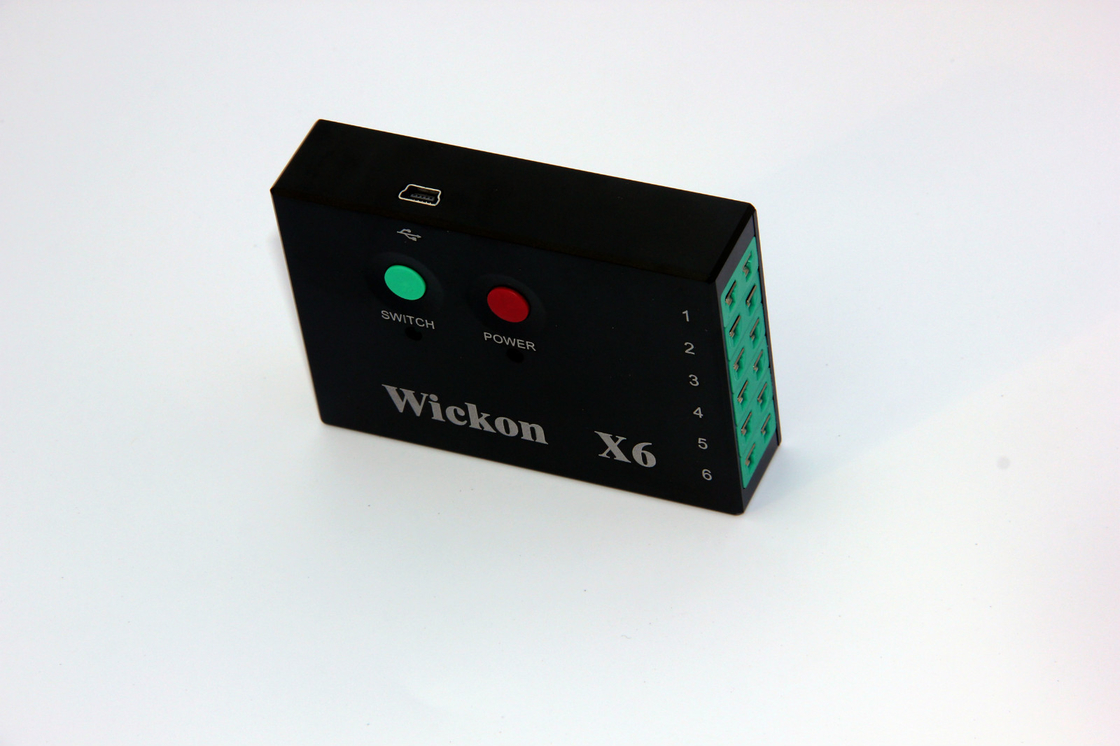

wickon x6 thermal profile Specification:
| Project | Description |
| Commodity | temperature curve tester |
| Temperature range | -200℃--1370℃ |
| Operating tempature | 0-105℃ |
| The total storage capacity | 4,000,000points |
| Battery | Without deliberately charging, automatic replenishment capacity, the real 365 without charge |
| Number of Channels | 6 channel |
| Sampling interval | 0.05s～86400s( Can be set according to the testing requirements ) |
| Thermocouple Types | K |
| Accuracy | ±0.5 ℃ |
| Battery Type | Rechargeable lithium polymer battery |
| Nsulated box Weight (kg) | Depending on the different specifications and different heat time |
| Insulated box size (mm) | Different specifications and heat time to decide |
